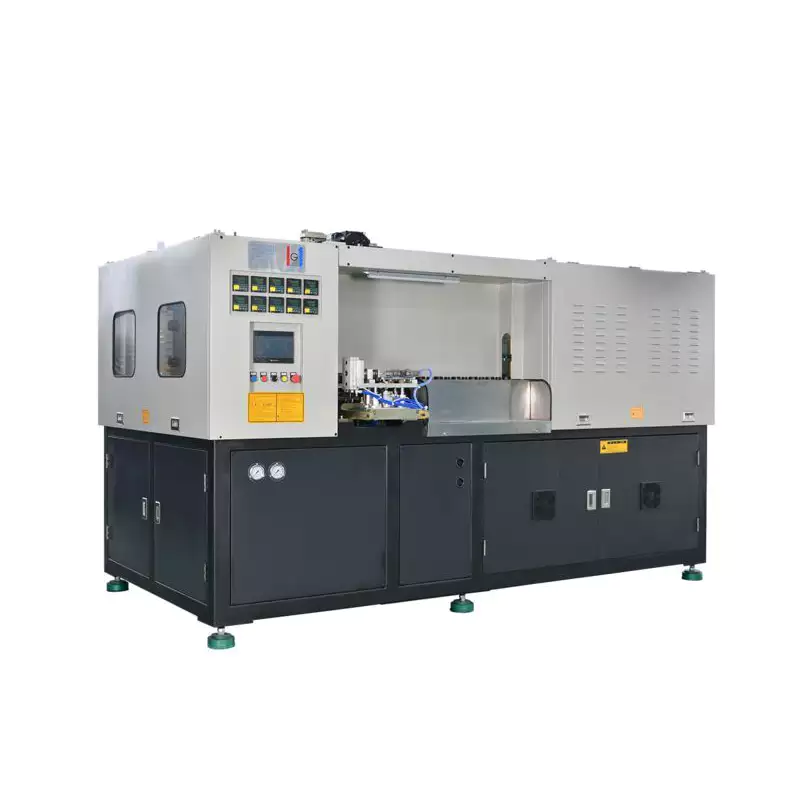

EP-HGA.ES-2C114.3 Automatic PET Blow Molding Machine — 1000ml, 2 Cavity, Cosmetic & Pharmaceutical Bottles

114.3mm Mold Close — 1,000ml Capability

The 114.3mm blow mold close distance is the defining specification of this model — enabling containers up to 94mm in diameter and 260mm in height. This opens the machine to full-size 750ml and 1,000ml cosmetic pump bottles, tall pharmaceutical syrups, and large personal care dispensers that are outside the ES-2C100’s dimensional range.

2,000 bph Stable Output

Theoretical output of 2,000 bottles per hour at 2 cavities. For dedicated production of a single 1,000ml SKU, this output level suits cosmetic brands with annual production volumes in the 3–8 million bottle range — a common scale for mid-market personal care brands entering direct manufacturing.

International Servo Drive

Servo-driven clamping, stretching, and take-out axes replace the hydraulic primary drives used on equivalent legacy machines. Energy savings of 20–35% compared to hydraulic-primary RSBM machines are typical at this output level. Servo positioning precision also contributes to consistent stretch-to-blow timing, which directly affects bottle weight consistency.

Pharmaceutical-Grade Process Control

The digital PLC control system logs all production parameters — temperature by zone, pressure by stage, and cycle count — supporting the production traceability requirements of regulated pharmaceutical and personal care manufacturing environments. Parameter recipes can be stored and recalled by product name, enabling validated changelovers between registered pharmaceutical bottle SKUs.

88mm Maximum Neck Diameter

With a maximum neck diameter of 88mm, the ES-2C114.3 accommodates the standard neck finish formats used in cosmetic dispensers, pharmaceutical closure systems, and personal care pump dispensers — including 38mm, 45mm, 60mm, and 70mm neck finishes that are common in the 500ml–1,000ml cosmetic segment.

Compact 2-Cavity Footprint

Machine dimensions of 3220 × 1660 × 2010mm with a weight of 3,000kg represent a compact installation footprint for a machine capable of 1,000ml container production. The single-level floor installation requires no pit or elevated platform, simplifying facility preparation compared to larger multi-cavity RSBM installations.

1,000ml Cosmetic Pump Dispensers

Full-size shampoo, conditioner, body wash and body lotion pump dispensers in the 750ml–1,000ml range. The 94mm body diameter and 260mm height parameters cover the majority of standard pump-dispenser bottle geometries used by mid-to-large personal care brands globally.

Pharmaceutical Syrups & Suspensions

Large-format oral pharmaceutical suspensions, liquid supplement bottles, and over-the-counter syrup packaging in the 500ml–1,000ml range. The automated zero-contact production cycle supports GMP compliance across regulated pharmaceutical manufacturing environments.

Application: 1,000ml PET shampoo and conditioner pump bottles for a Korean personal care brand manufacturing for both domestic retail and export to Southeast Asia.

Problem solved: The brand was sourcing 1,000ml bottles from three different Chinese suppliers, creating inconsistency in bottle weight and neck-finish dimensions that caused jamming on their automated filling lines. Bringing production in-house with the ES-2C114.3 eliminated supplier variability and reduced filling-line downtime from 4–6 hours per week to under 30 minutes.

“We were losing half a shift per week to filling-line jams caused by bottle inconsistency. Since bringing production in-house, that problem has essentially disappeared.”

Application: 500ml and 750ml PET oral suspension bottles for a Colombian pharmaceutical manufacturer registered with INVIMA.

Problem solved: The facility needed to run both 500ml and 750ml formats from a single machine within the same week. The ES-2C114.3’s 88mm neck diameter range covers both formats, and the digital recipe changeover allowed the facility to switch between sizes in under 2.5 hours — fitting the changeover within a standard maintenance window without disrupting the production schedule.

“Two registered formats, one machine, changeover within a maintenance window. Our INVIMA site audit noted the validated changeover protocol as an example of good manufacturing practice.”

Application: 1,000ml PETG body wash and shampoo pump bottles for an Australian natural cosmetics brand supplying national pharmacy chains and specialty retailers.

Problem solved: The brand required PETG for its superior clarity and BPA-free positioning. Their previous supplier could not guarantee consistent PETG processing on 1,000ml format bottles. The ES-2C114.3’s zone-controlled heating system maintained stable PETG processing parameters across extended runs, producing consistent clarity suitable for the brand’s premium shelf presentation.

“PETG at 1,000ml is not trivial — the heating window is narrow and the clarity drops off fast if the profile drifts. This machine holds the profile consistently across a full 8-hour shift.”
